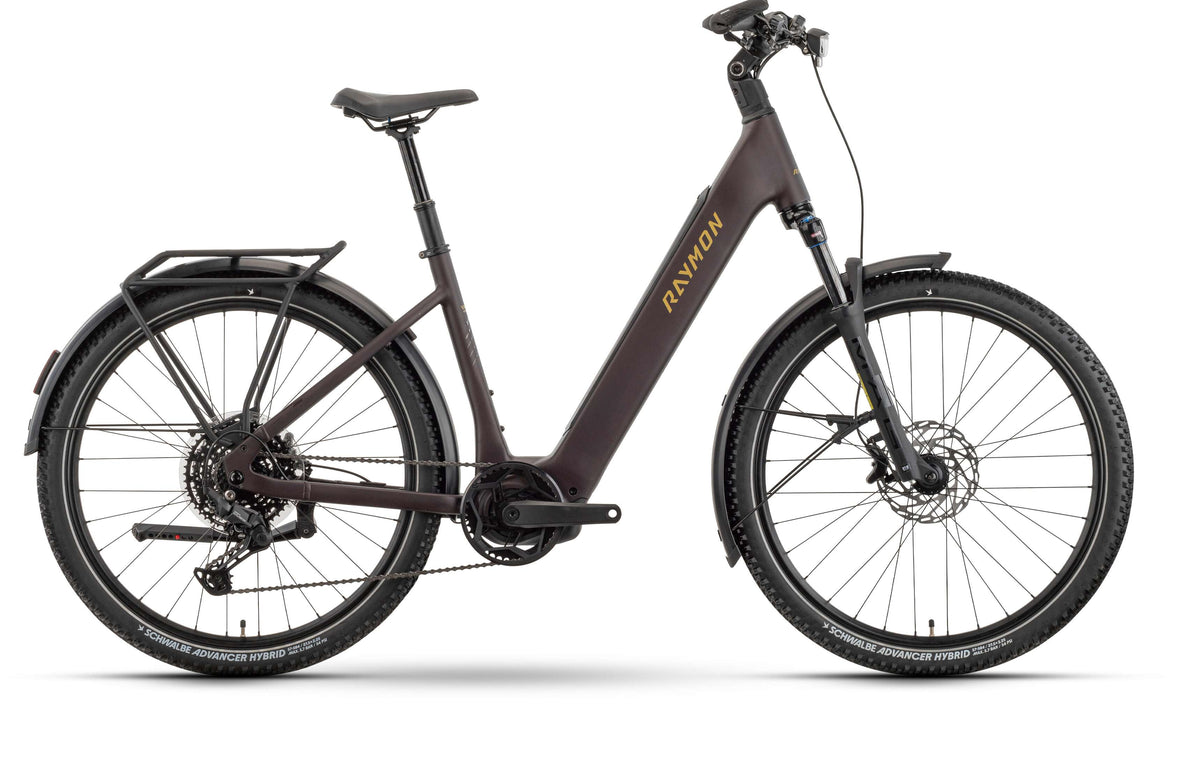

Raymon Varno Ultra plum noir
3.799,00€
Details
Technische Daten
| Akkuleistung in Wh | über 750 Wh |
| Akku | Avinox RS800, 800 Wh, 36 V |
| Beleuchtung | ja |
| Bremse | Tektro HD-M5140, 4-piston, hydr. disc brake |
| Display | Display: under embargo / Remote: integrated in display |
| Gabel | SR Suntour MAG32 TR Boost LO, air, 100 mm, tapered |
| Gepäckträger | Raymon, MIK HD, 27 kg |
| Gewicht in kg | 26,3 |
| Jahr | 2027 |
| Kassette/Zahnkranz | Shimano Cues, CS-LG300, 11-48T |
| Kette | Shimano CN-LG500 |
| Kettenblätter | Raymon, Narrow Wide, 40T, CG |
| Kurbel | Raymon FC40, forged alloy, ISIS |
| Ladegerät | Avinox Charger, 4 A |
| Laufradgröße | 27,5'' |
| Laufradsatz | Raymon VR28/DE207, 15x110/12x148 mm, tubeless compatible |
| Lenker | Raymon Riser 31,8 mm, Sweep: 12 °, Rise: 20 mm |
| Modelljahr | 2027 |
| Motor | Avinox M2, 250/1100W, 125Nm |
| Pedale | Raymon, thermoplastic |
| Pedelec Antrieb | Mittelmotor |
| Rahmen | AL61-T6 Aluminium, seamless welding |
| Rahmenform | Tiefeinstieg |
| Rahmenmaterial | Aluminium |
| Reifen | Schwalbe Advancer Hybrid, Reflex, 57-584, 27.5x2.25 |
| Rücklicht | Sate-lite M16, brake light |
| Rücktritt | Nein |
| Rücktrittbremse | nein |
| Sattel | Raymon VacTech |
| Sattelstütze | Raymon, 34,9 mm, Dropper Post |
| Schalthebel | Shimano Cues, SL-U6001, Rapidfire Plus |
| Schaltung | Kettenschaltung |
| Schaltwerk | Shimano Cues, LG, RD-U6000, 10-S |
| Scheinwerfer | B&M Briq-S E, 60 lx |
| Schutzbleche | SKS Alu |
| Ständer | Ursus MOOI, KSA40, adjustable |
| Steuersatz | ZS56/ZS56 |
| Vorbau | Raymon 31,8, Ahead, adjustable |
| Zulässiges Gesamtgewicht in kg | 150 |
