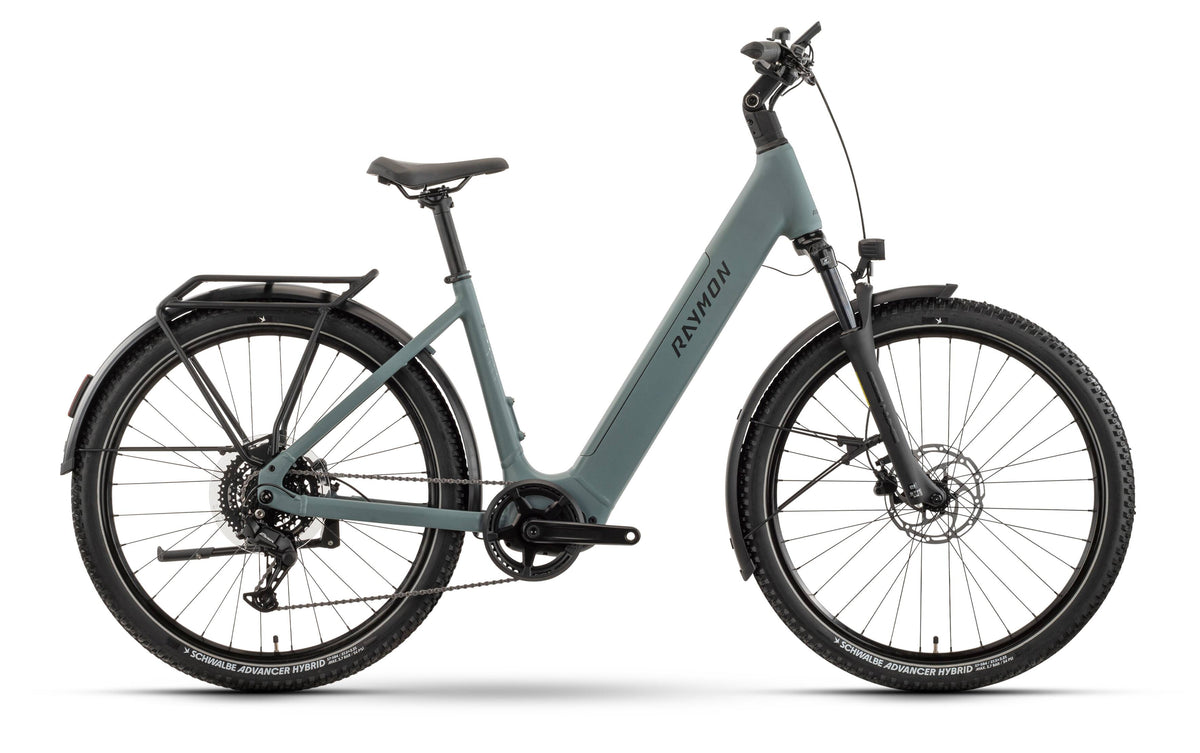

Raymon Varno Pure northgrey
2.299,00€
Details
Technische Daten
| Akkuleistung in Wh | bis 625 Wh |
| Akku | PH 504 Wh, 36 V |
| Beleuchtung | ja |
| Bremse | Tektro HD-M3120, 2-piston, hydr. disc brake |
| Display | Display: Oli D500, Bluetooth / Remote: Oli Remote K31 |
| Gabel | SR Suntour NVX32-5TA LO, coil, 100mm, tapered |
| Gepäckträger | Raymon, MIK HD, 27 kg |
| Gewicht in kg | 26 |
| Jahr | 2027 |
| Kassette/Zahnkranz | Shimano CS-HG300-8, 11-45T |
| Kette | KMC e8S |
| Kettenblätter | Raymon, Narrow Wide, 40T, CG |
| Kurbel | Raymon FC05, forged alloy, JIS |
| Ladegerät | PH Charger, 2 A |
| Laufradgröße | 27,5'' |
| Laufradsatz | Raymon VR28/DN622/KRA210, 9x100/12x148 mm, tubeless compatible |
| Lenker | Raymon Riser 31,8 mm, Sweep: 12 °, Rise: 20 mm |
| Modelljahr | 2027 |
| Motor | Oli Pico, 250/650 W, 70 Nm |
| Pedale | Raymon, thermoplastic |
| Pedelec Antrieb | Mittelmotor |
| Rahmen | AL61-T6 Aluminium, seamless welding |
| Rahmenform | Tiefeinstieg |
| Rahmenmaterial | Aluminium |
| Reifen | Schwalbe Advancer Hybrid, Reflex, 57-584, 27.5x2.25 |
| Rücklicht | Sate-lite M16 |
| Rücktritt | Nein |
| Rücktrittbremse | nein |
| Sattel | Raymon VacTech |
| Sattelstütze | Raymon, 31,6 mm |
| Schalthebel | Shimano SL-M315, Rapidfire Plus |
| Schaltung | Kettenschaltung |
| Schaltwerk | Shimano Essa, RD-U2000, 8-S |
| Scheinwerfer | Herrmans Nordic CL3 E, 30 lx |
| Schutzbleche | SKS PET |
| Ständer | Raymon, KSA40, adjustable |
| Steuersatz | ZS56/ZS56 |
| Vorbau | Raymon 31,8, Ahead, adjustable |
| Zulässiges Gesamtgewicht in kg | 150 |
