Technische Daten
Akkuleistung in Wh | 750 Wh |
Akku | Bosch PowerTube 750 |
Beleuchtung | Ja |
Bremse | Magura MT Thirty, Front 4-Piston/Rear 4-Piston, Hydr. Disc Brake (203/203) |

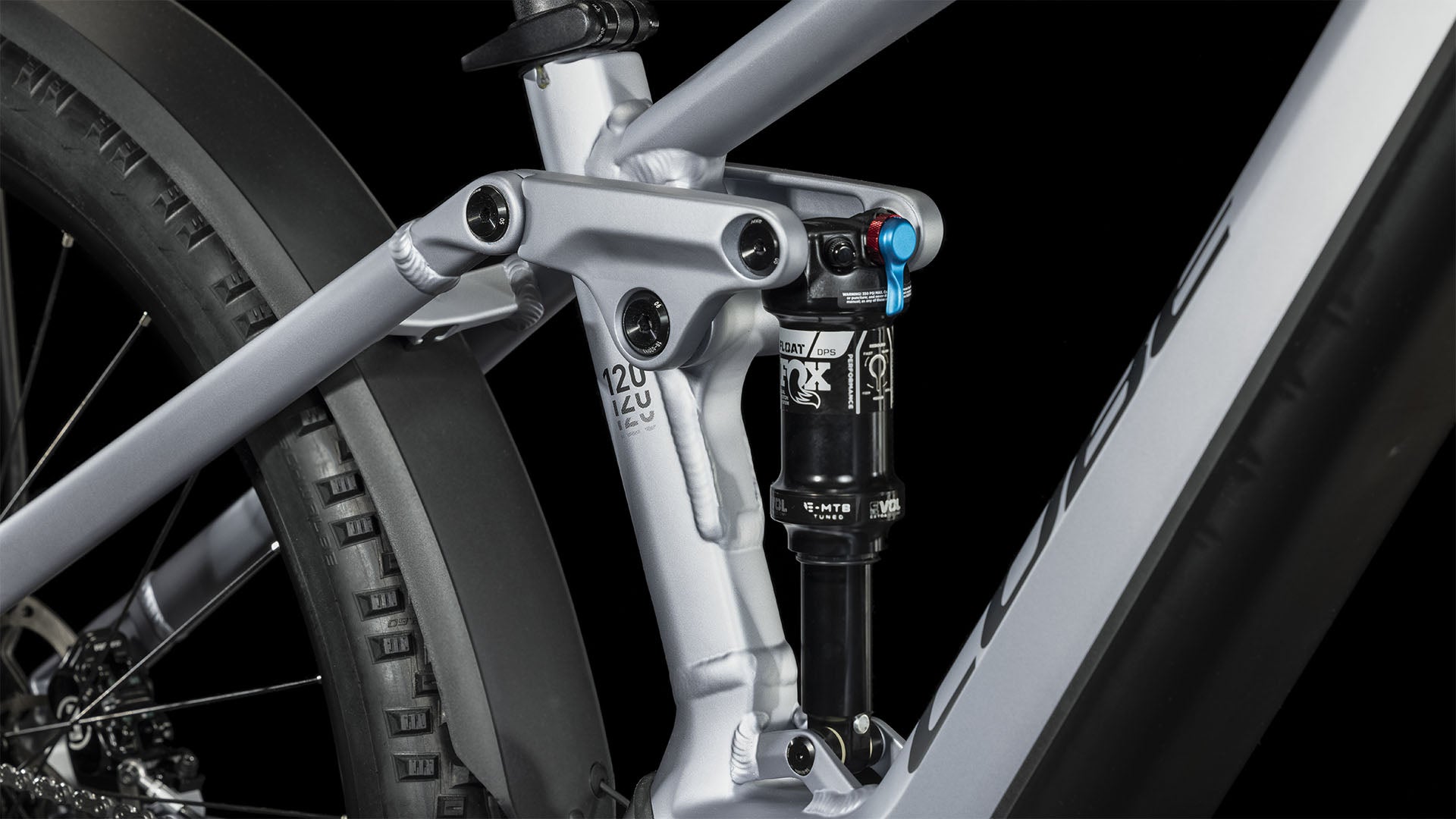

Dämpfer | Fox Float DPS EVOL, 185x55mm (27.5: 165x45mm), Open/Medium/Firm Mode, Trunnion Mount |

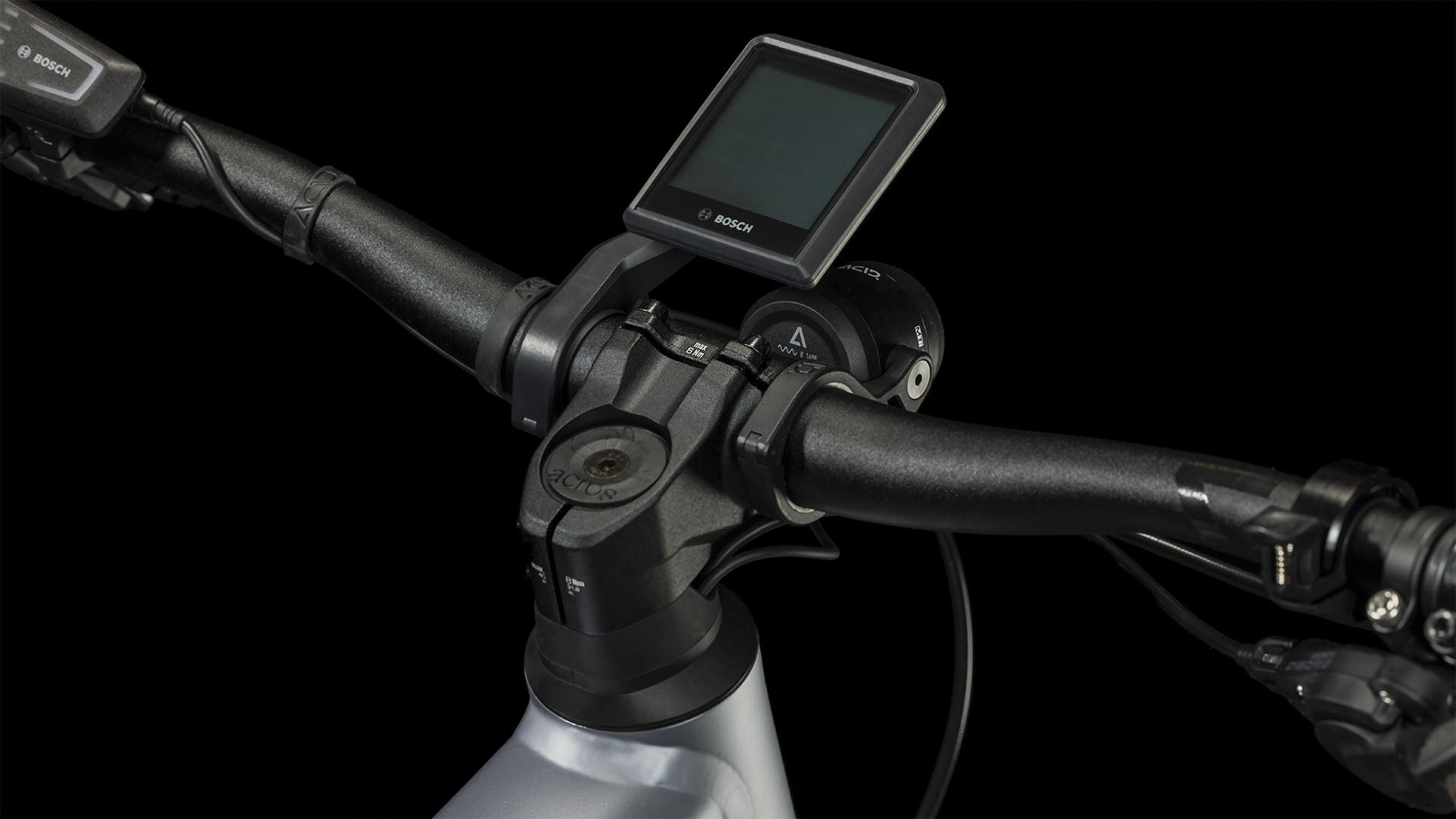

Display | Bosch Intuvia 100 |
Erhältliche Rahmenhöhen | Size Split: 27.5: S // 29: M L XL |
Felgen | CUBE EX30, 32H, Disc, Tubeless Ready |
Gabel | Fox 34 Float AWL, 2-Position Sweep-Adjust RAIL Damper, Tapered, 15x110mm, E-Bike Optimized, 120mm |

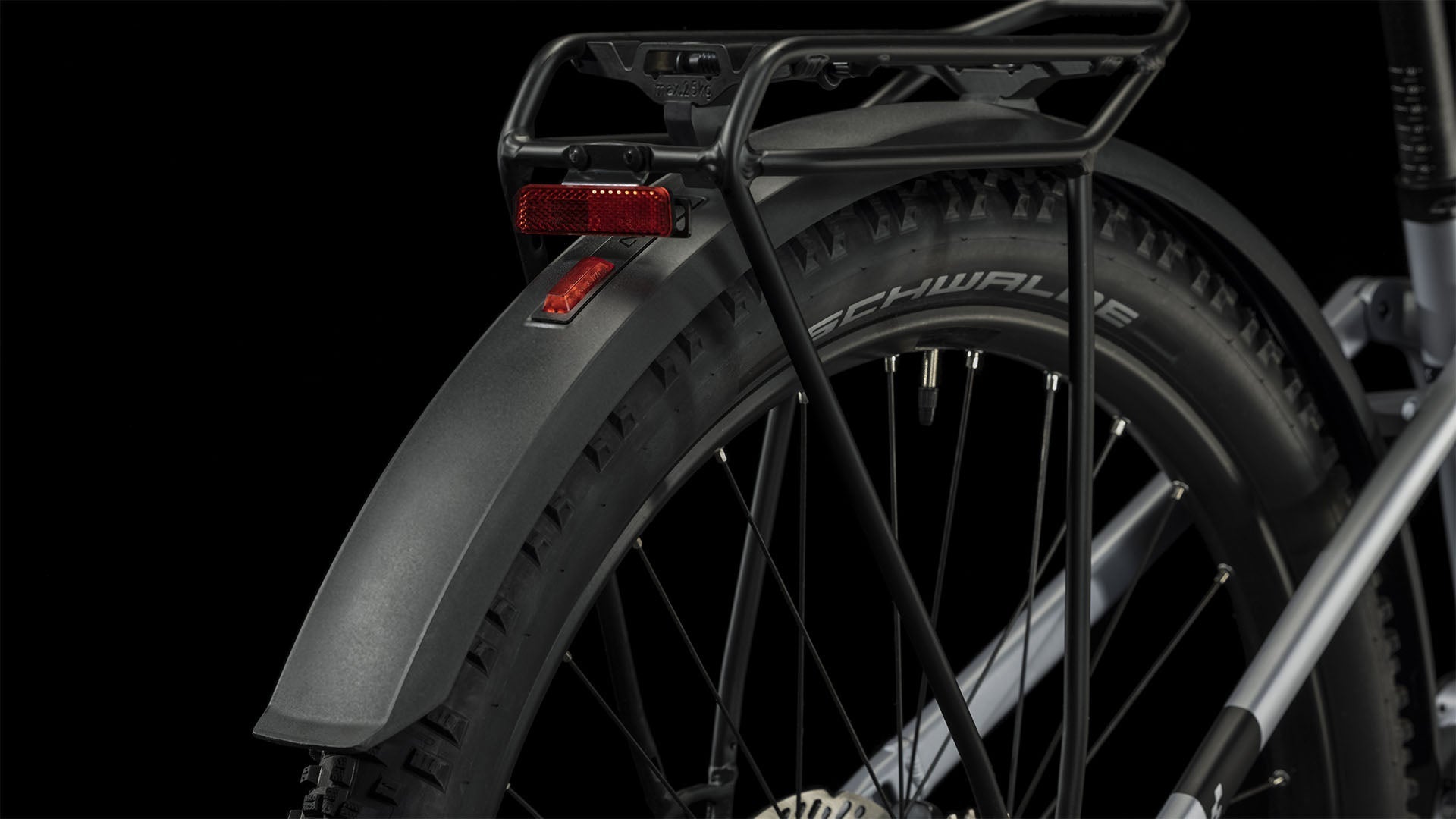

Gepäckträger | ACID Semi-Integrated Carrier, ACID RILink Adapter Compatible |
Gewicht in kg | 27,4 kg |
Griffe | ACID Hybrid Perform |
Highlight | nein |
Jahr | 2024 |
Kassette/Zahnkranz | Shimano Deore CS-M6100, 10-51T |
Kette | Shimano CN-M6100 |
Kurbel | ACID E-Crank, 38T, 170mm |
Ladegerät | Bosch 2A |
Laufradgröße | 27,5'' |
Lenker | Newmen Evolution SL 318.25, 760mm |
Motor | Bosch Drive Unit Performance CX Generation 4 (85Nm) Cruise (250Watt), Smart System |
Naben | Shimano HB-MT400-B, 15mm, Boost, Centerlock, Shimano FH-MT410-B, 12mm, Boost, Centerlock |
Pedale | ACID PP MTB |
Pedelec Antrieb | Mittelmotor |

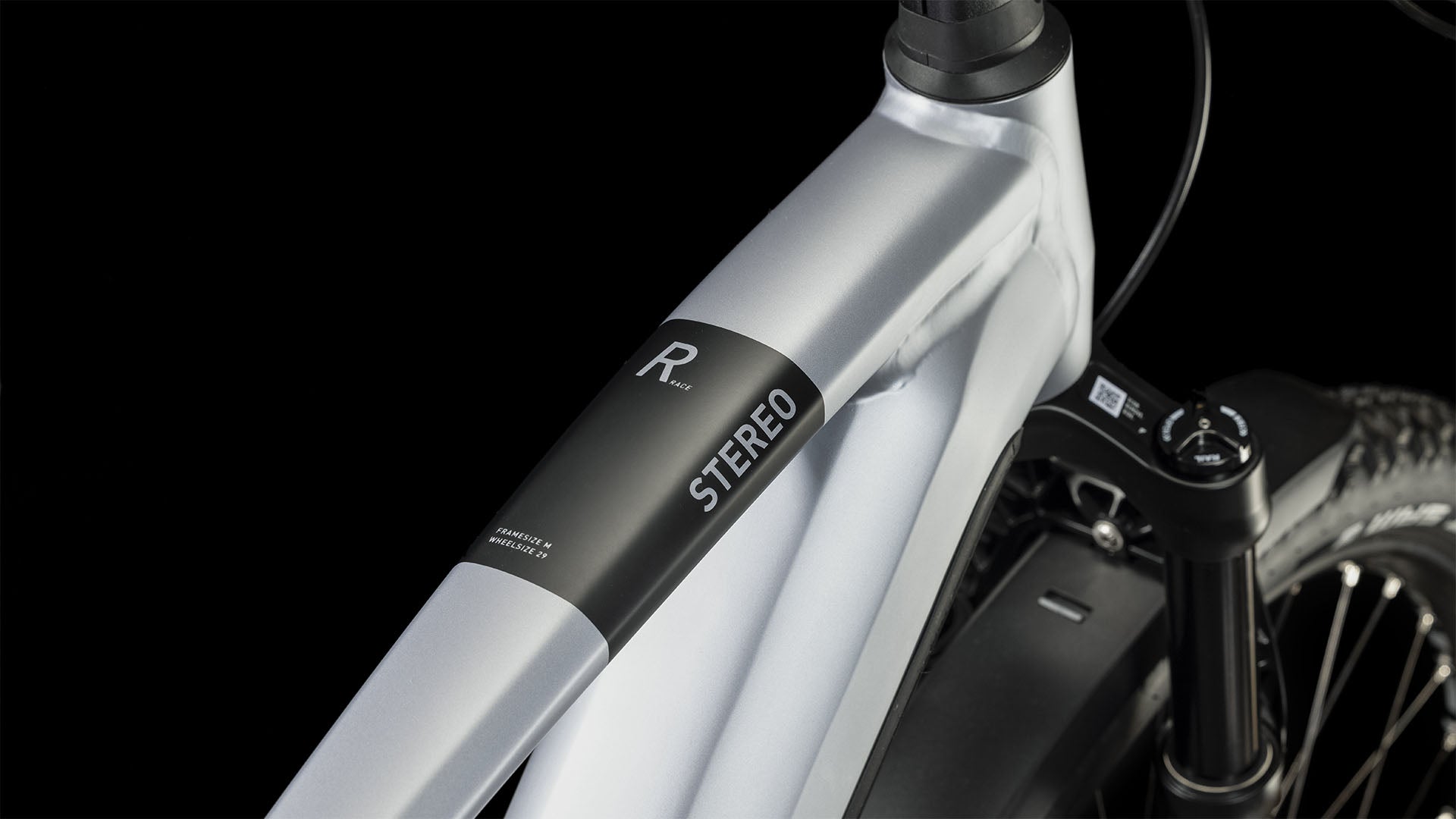

Rahmen | Aluminum Superlite, Gravity Casting Technology, Efficient Comfort Control, FSP 4-Link, Agile Comfort Geometry, Boost 148, Fully Integrated Battery, Advanced Internal Cable Routing |
Rahmenform | Diamant |
Reifen | Schwalbe Smart Sam, Active, 2.6 |
Rücklicht | ACID Mudguard Rear Light PRO-E, 12V, DC |
Sattel | Natural Fit Sequence |
Sattelstütze | CUBE Performance Post, 30.9mm |
Schalthebel | Shimano Deore SL-M6100, Rapidfire-Plus |
Schaltung | Kettenschaltung |
Schaltwerk | Shimano XT RD-M8100-SGS, ShadowPlus, 12-Speed |

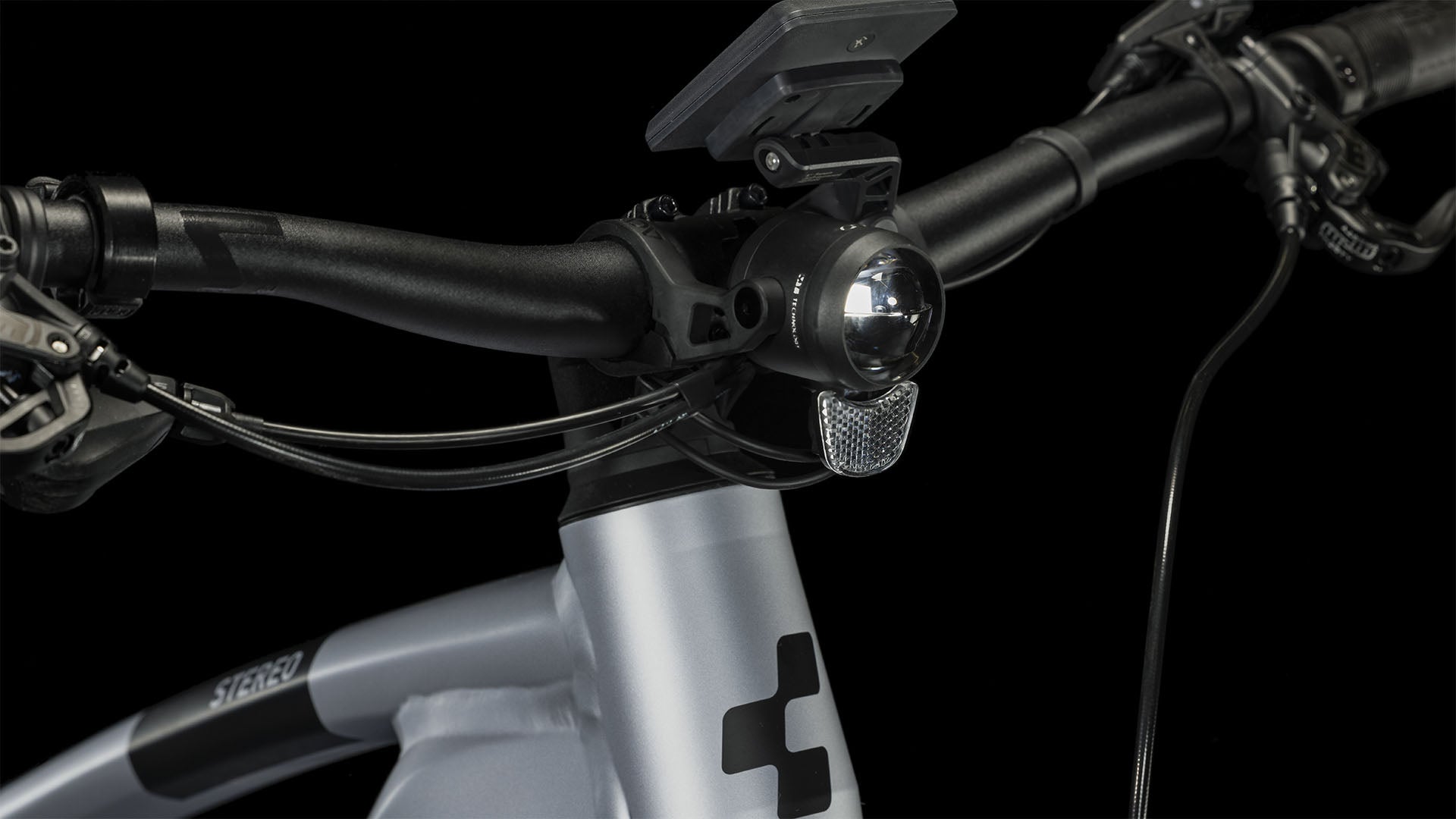

Scheinwerfer | ACID Front Light PRO-E 110, 5-16V, DC |
Schutzbleche | ACID 75 |
Ständer | ACID FM Pure Kickstand |
Steuersatz | ACROS AZF-1035, ICR (Integrated Cable Routing), BlockLock 120°, Top Zero-Stack 1 1/2" (ZS 56mm), Bottom Zero-Stack 1 1/2" (ZS 56mm) |
Vorbau | CUBE Performance Stem E-MTB, 31.8mm |
Zulässiges Gesamtgewicht in kg | 160 kg |
